Efficiency and robustness in agricultural transport.
Benefits and differentials:

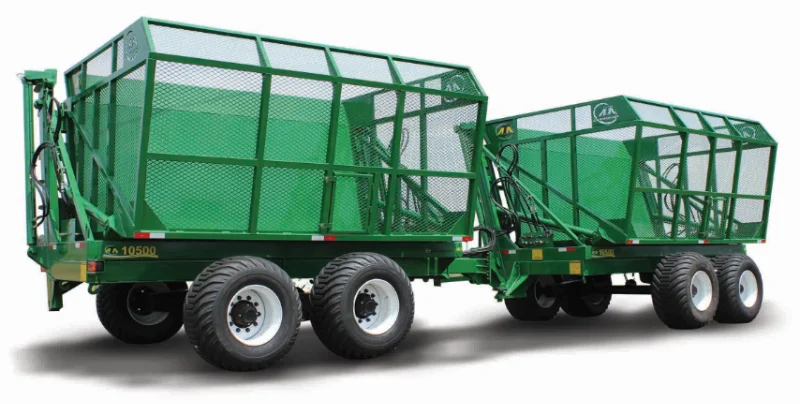

The ATA 10500 transhipment was designed to optimize logistics in the field, offering a large load capacity (10.5 tons) and robustness to withstand the most demanding agricultural operations. Its tipping system allows for agile and precise unloading, reducing working time and increasing productivity.
With low-pressure tires, the equipment guarantees better traction and less soil compaction, preserving the quality of the terrain. It also has air brakes (Spring-Brake) for greater safety during transportation. As an option, it can be equipped with an oil tank of up to 100 liters and a hydraulic pump, providing even more versatility.
Ideal for producers looking for efficiency, safety and high performance in agricultural transportation.
Details and technical specifications of the equipment.
Model
ATA 10500
Maximum width
3,600mm
Minimum height
3.550mm
Length
7.300mm
Approximate weight
7.350kg
Standard gauge
2,000 - 2,800 to 3,000mm
Air reservoir (brake)
50 L
Max. working pressure
150 BAR
Brakes (Spring-Brake)
Air on the 2 front wheels with distributor valve
Hitch
Ball stud
Volumetric capacity
24m3
Tires used
600/50 - 22.5 low pressure
Load capacity
10.5 ton
Power
170hp - p/02 car.
Optional
80 or 100 L oil tank with filter - Hydraulic pump
